Demo splash

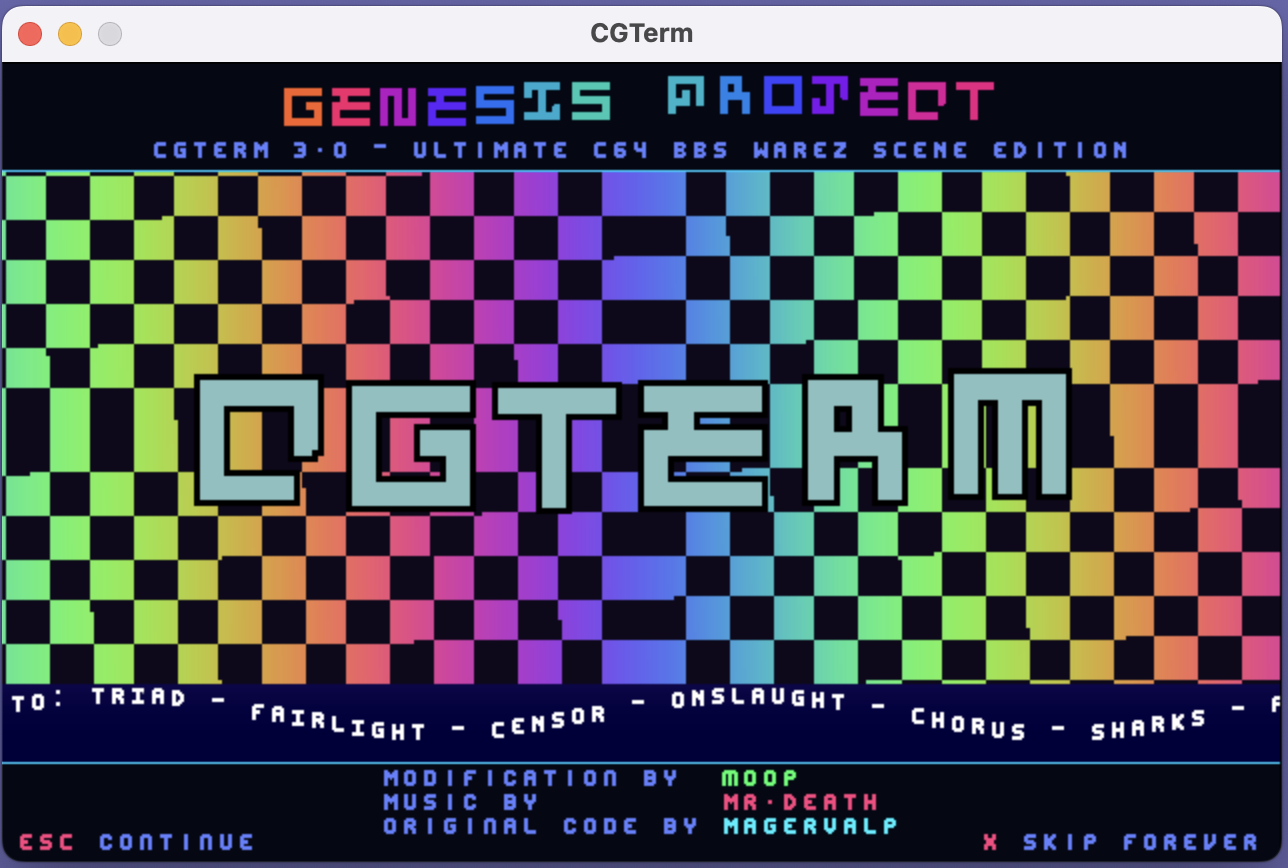

Demoscene-style intro in the spirit of greet disks and party screens: vectorballs, plasma, rotozoom, wireframe morph, XM module, sine scroller, greetings; CRT-style power-down when you exit.
BBS · demoscene · legacy · 2026
Terminal for Commodore 64 bulletin boards
PETSCII-native terminal for Commodore 64 bulletin boards: Telnet, file transfers, disk images, cross-platform SDL builds for macOS, Linux, and Windows. MagerValp’s CGTerm, carried forward as this scene edition.
The C64 boards from CGTerm’s phonebook, ready to dial. Loading the phonebook…
Dialling…

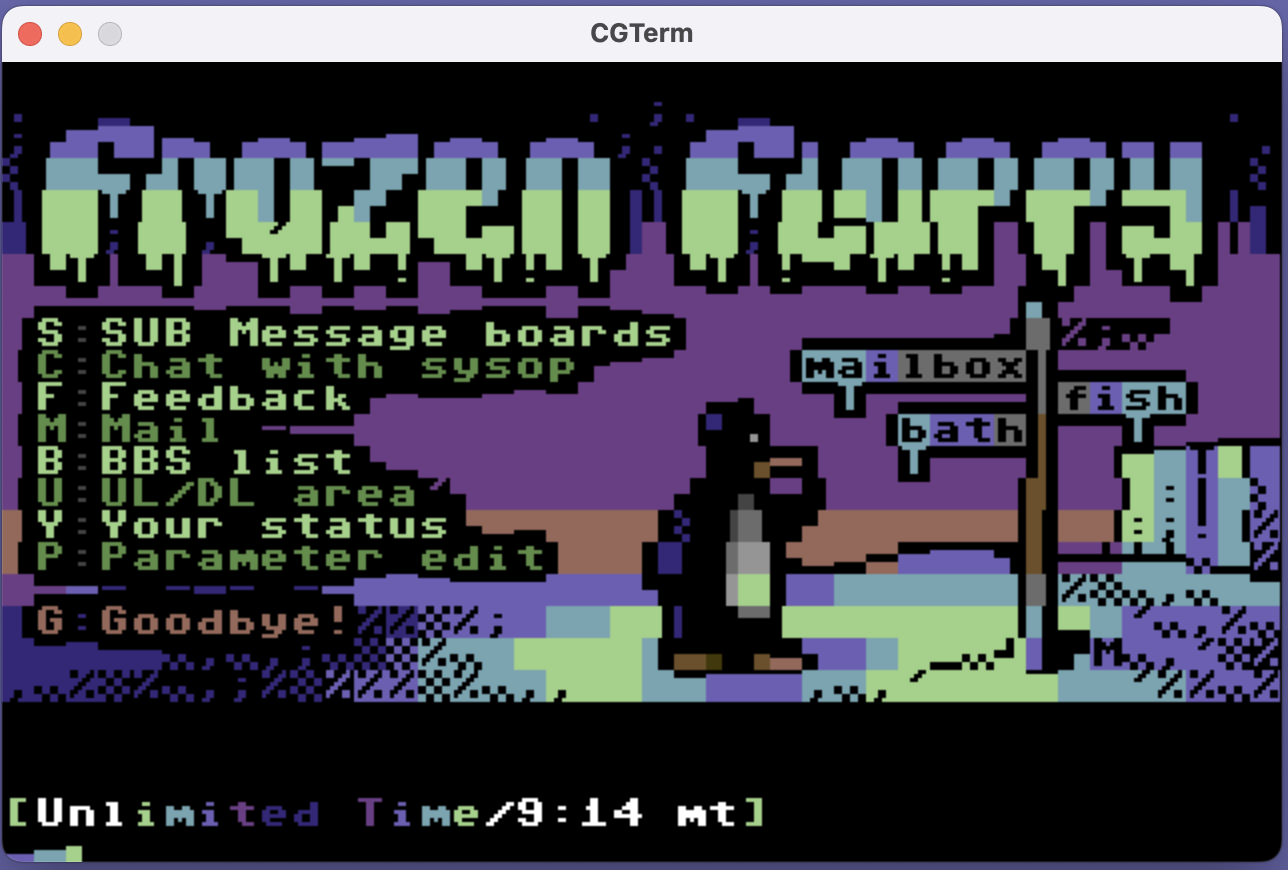

In-browser session to Frozen Floppy BBS via fTelnet. Press DIAL on any board above to call it instead. The widget loads only after you press the button below (external script; allow it if your browser blocks third-party content).
fTelnet is not loaded until you request it, to keep the page fast and avoid unnecessary third-party requests.
Native client: cgterm bbs.retrohack.se 64128
Loading…
CGTerm is the client MagerValp’s vision deserves on today’s machines: real C64 boards over Telnet, PETSCII on the glass, transfers and disk images done the way sysops and callers still expect, with SDL builds for macOS, Linux, and Windows. Many of us learned the network by watching characters crawl across the screen at 9600 baud, greeting demos before the menu, trading files and mail in a culture that treated knowledge as something meant to move freely. Bulletin boards, the demoscene, and the old curiosity-driven scenes are part of how all of this began; nothing that came later, not even the wave of AI we have now, erases that root. This project exists to keep the line open and the legacy breathing.
The original code is MagerValp’s; this scene edition is a deep refresh by David “m00p” Jacoby and Genesis*Project, with sysops, swappers, and callers who still think in blocks. I take no credit for MagerValp’s foundation. This release is for the community, the build many of us were waiting for, so BBSing stays a little easier and the people keeping lines up stay visible. New hands at the keyboard are welcome. We stand at the edge of powerful AI and vast clouds, but the glow of this era is still the beginning we build from. That legacy should never die.
For callers and sysops (transport security): typical BBS access uses Telnet (cleartext). Traffic can be observed on untrusted networks, as with historical dial-up paths converted to TCP. Use strong, unique passwords per board where possible, and treat the session like any unencrypted terminal connection.
Demoscene-style intro in the spirit of greet disks and party screens: vectorballs, plasma, rotozoom, wireframe morph, XM module, sine scroller, greetings; CRT-style power-down when you exit.
Optional connection theatre: green-phosphor look, AT sequence with phone book, dial tone, DTMF, and carrier-style audio (approximate V.34-era line). For anyone who still remembers pacing the scroll at 9600 baud. Toggle from the menu. Bell and modem sounds now work on macOS and Linux too, with mute and volume adjustable while you are connected, and the XM music loops without a gap. The dial sequence runs first and the board is called when the modem answers, so no board times out while you listen; ESC skips to CONNECT.
Batch send and receive with real file names and sizes, crash recovery to resume broken downloads, CRC-32, and auto-start the moment the board begins sending: CGTerm asks once per connection before it accepts a download a board offers. No more typing file names twice.

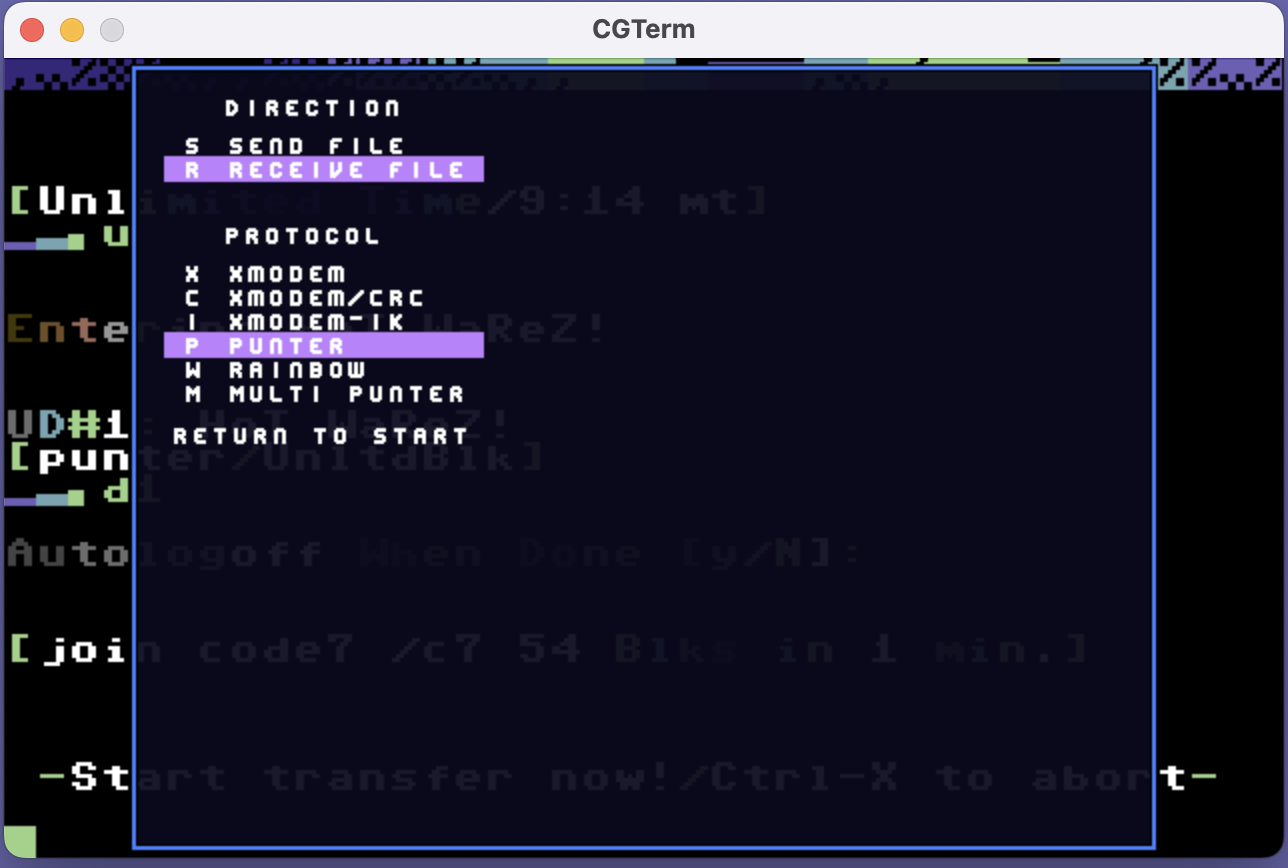

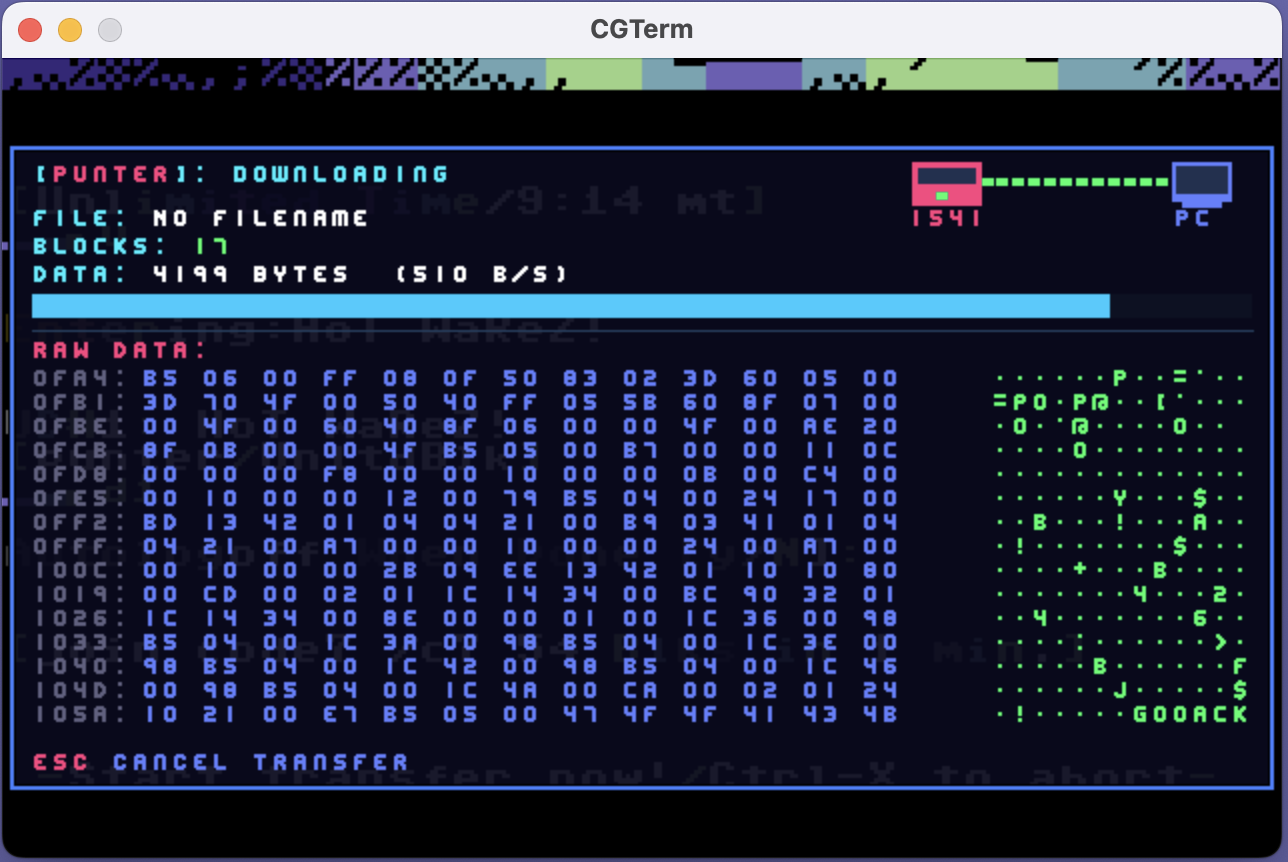

ZMODEM, Multi Punter (batch), Rainbow, XMODEM variants (checksum, CRC, 1K), and Punter. Last protocol is preselected (T + Return), every transfer is logged with bytes, time and cps, and you get an on-screen summary. Progress UI, optional hex view, cancel that no longer stalls the other end, free-space checks, and filename conversion between PC extensions and C64 comma types (e.g. .prg ↔ ,p). Uploads are stored as PRG/SEQ according to the file you send; debug mode (-b) records every transferred byte. Cap the receive speed to a retro baud rate (2400/1200/300) so message scroll stays readable. 3.0.3 fixed a Punter/Rainbow upload that could go out empty, and 3.0.4 makes the Punter handshake tolerate the status text real boards print around a transfer. 3.0.5 lets Rainbow uploads survive a retry, stops Rainbow and Punter downloads from losing sync or ending early, and no longer mistakes PETSCII art for Telnet negotiation. 3.0.6 aligns the protocols with the C*Base board: files from a disk image keep their SEQ/USR type, Multi Punter uploads start, and Punter waits while the board writes to disk.

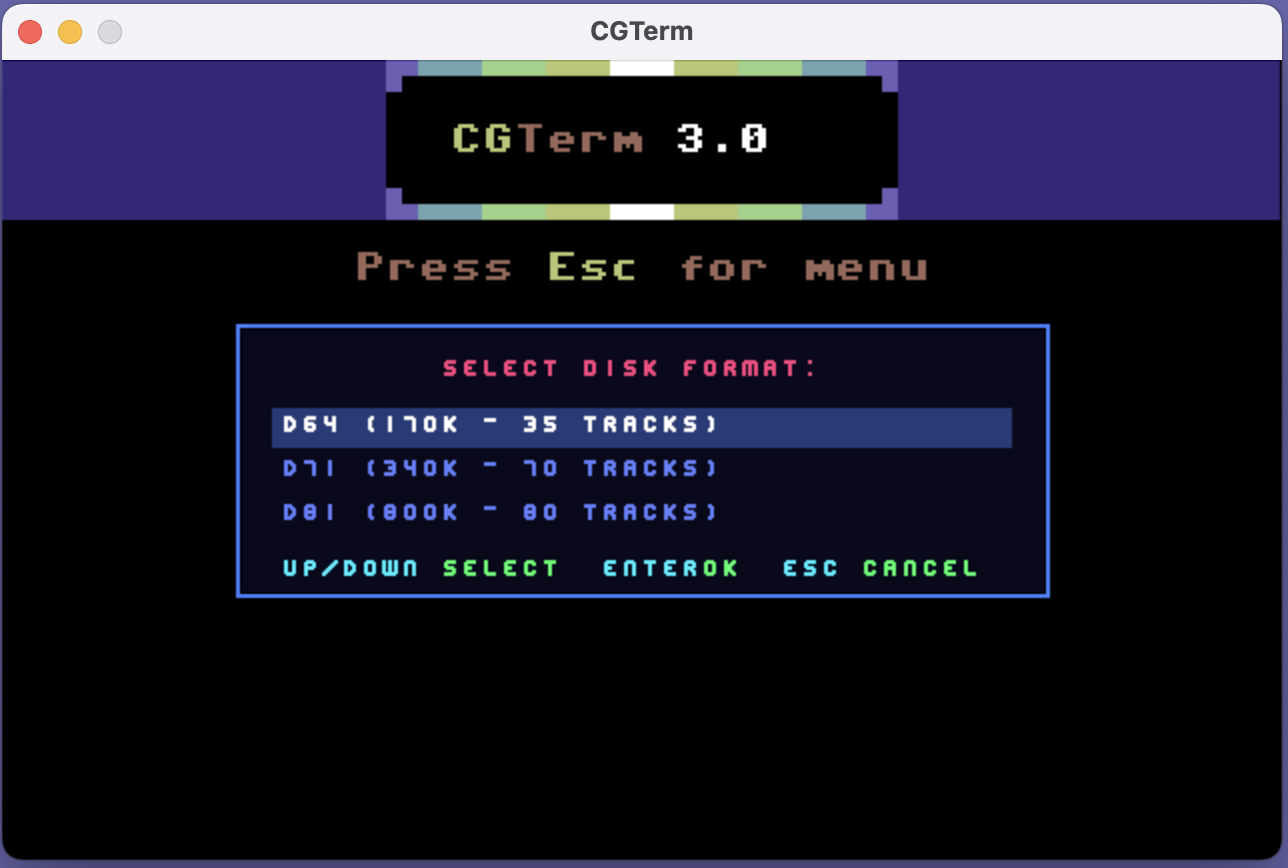

Open D64, D71, and D81 images like folders; set an image as download target; extract and inject PRG/SEQ/USR with PETSCII-aware names and block accounting. New disk tools: validate (rebuild the BAM), lock/unlock, rename disk and ID, extract to the host, insert into an image, a real CBM-style listing with splat and lock markers, and support for images with error tables.
Ten header and nine body pixel fonts, selectable in settings, plus support for adding converted TTF/OTF assets through the project’s usual pipeline.
Status line, capture toggle, copy the screen as text, and paste that transliterates UTF-8. Much fuller ANSI: scroll regions, pending wrap, save/restore cursor, insert/delete/erase characters, iCE colours, truecolour, line drawing, xterm keys and Alt hotkeys. Pick the display case: set case = upper or case = lower in the config, or flip it live with Commodore+Shift.
Swedish, US, and German-oriented layouts on macOS, Linux, and Windows, and any extra layouts you drop into the assets folder are picked up automatically. Keyboard test screen with PETSCII mapping; macros record RETURN, cursor keys and F-keys. Pick a layout at startup, e.g. cgterm -k assets/mac-se-c64.kbd (US/SE profiles for mac, linux and windows ship in assets/). AltGr types the characters printed on your keyboard (@, [, ] and so on) on Swedish, German and other non-US layouts; Left Alt is the Commodore key. Caps Lock only affects letters, and Shift+Backspace sends INST.

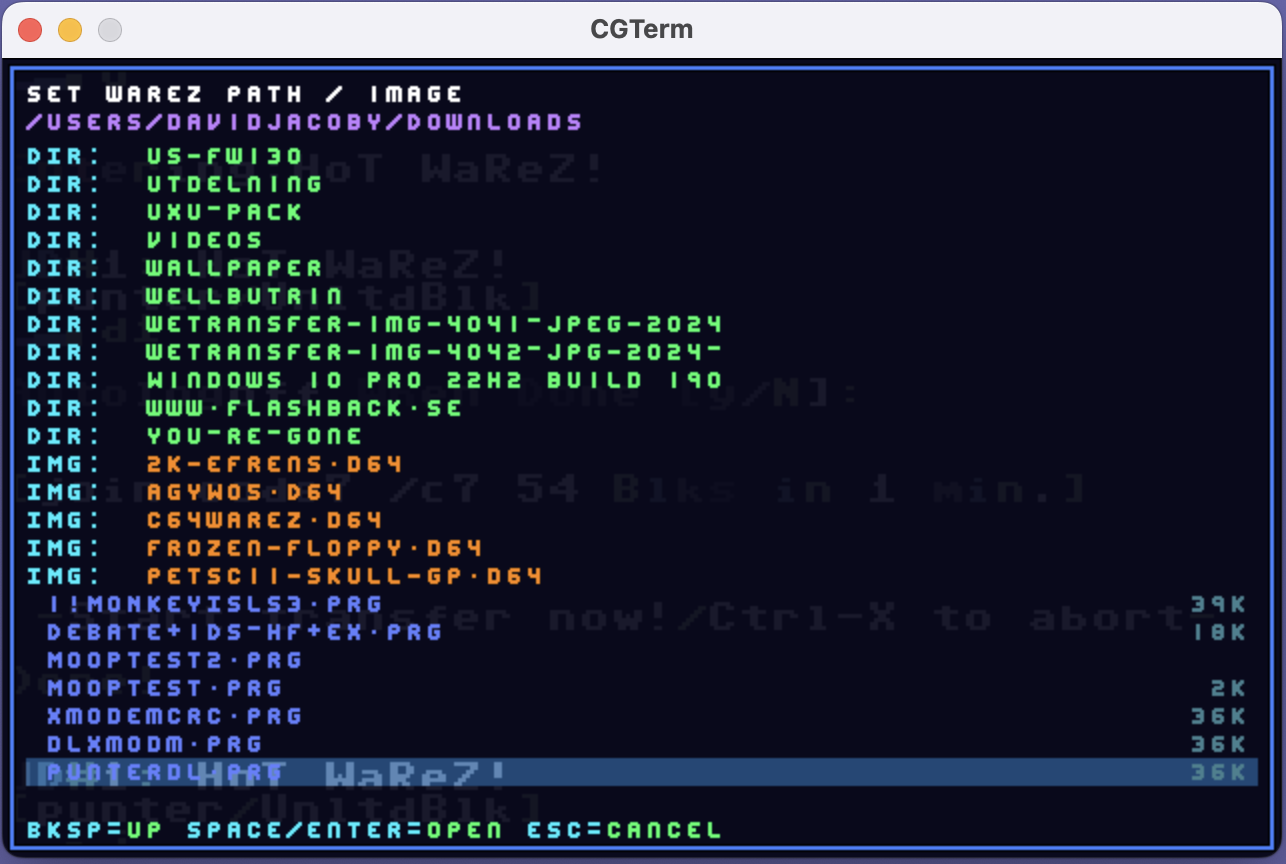

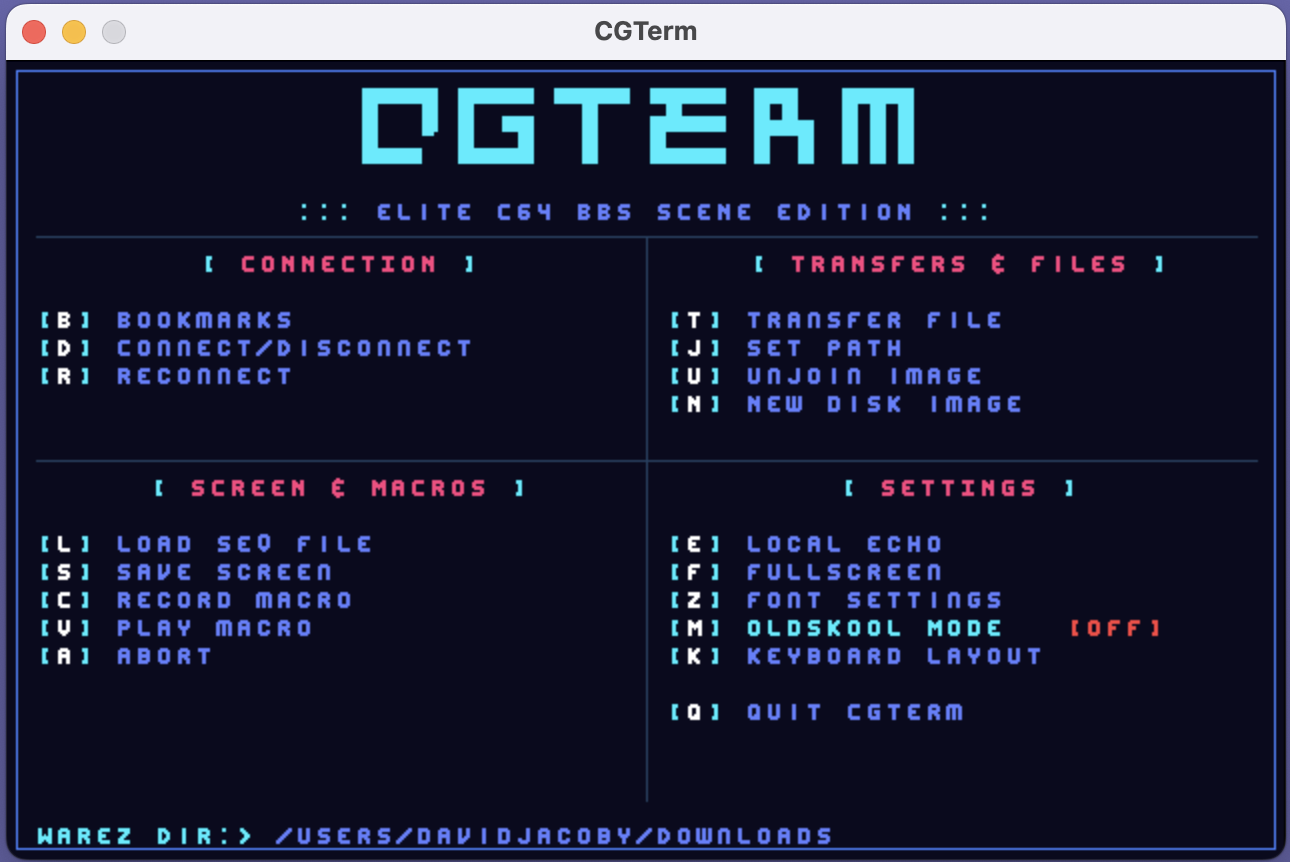

Animated ANSI start screen, logo by nail / fire: a pulsing glow and a sweep of light while you are offline. Drop your own 80-column startup.ans into the assets folder to replace it. Categorized menus, colour-distinguished file selector (directories, disk images, files), consistent accent theme, and visible transfer path so download and upload directories stay obvious. Drag the window to any size: crisp mode snaps to whole zoom steps, smooth mode fills any size, and the menu and logo scale with the window. Switch 40/80 columns from the Options panel.

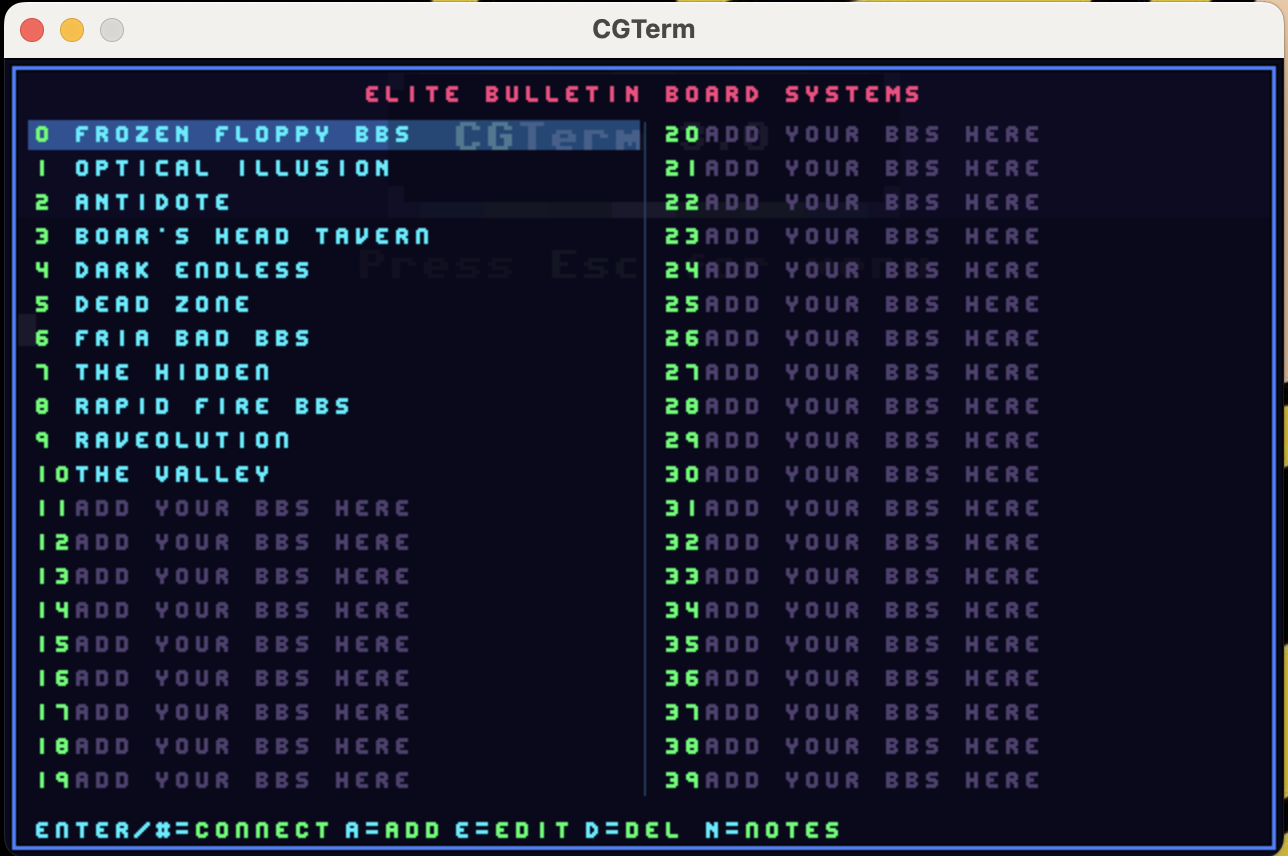

Forty entries with host, port, alias, and terminal mode fields; per-board notes (now with a real cursor for editing) and auto-login scripts; bookmarks live in their own file, so deleting one sticks; numeric quick-connect where configured.
Connection history with one-key redial, per-bookmark auto-login scripts (in a bookmark’s notes: login=w:handle;s:M00P;cr;w:password;s:secret;cr; case and colour codes are ignored when matching, so C*Base logins work; a semicolon inside a step is written \;), automatic reconnect after any dropped line, and an options panel. Ten text macros on Cmd/Win+0–9, and a cursor-editable notes field for the login scripts. IPv6 support (IPv4 tried first for old boards), and Telnet negotiation in ANSI mode.
November 2026 security pass, shipped in 3.0.2: a heap overflow on 40/80 column switch, non-cancellable transfer hangs, a file-descriptor leak, Telnet and ANSI flood freezes and a notes-file wipe are all fixed, on top of bounded string handling, filename validation for downloads, protocol length limits and warning-clean builds on GCC and Clang. Reviewed, fuzzed under ASan/UBSan, documented in the source package. 3.0.5 adds a second pass: text queued for a board (a paste or an auto-login password) is dropped when the connection ends instead of going to whatever answers next, ZMODEM auto-download asks before it accepts, notes, logs and history are readable by your user only, downloads cannot overwrite existing files, and the Windows build ships with stack protection, ASLR and DEP.
Windows portable archive (settings, bookmarks and logs in %APPDATA%\CGTerm); ready-made macOS app for Apple Silicon (macOS 26 or later); Linux via make, make install and make uninstall. Native MinGW build on Windows, make test and make fuzz, and continuous integration on GitHub Actions.
Click a thumbnail for fullscreen. Keyboard: Tab to move focus, Enter to open, Escape to close the viewer.
New start screen. The still “CGTERM 3.0” picture gives way to the CGTerm ANSI logo drawn by nail / fire, animated with a pulsing glow and a sweep of light. Packages, SHA256SUMS and the full CHANGELOG.md on the GitHub release page.
Transfers aligned with the C*Base board after a protocol audit of both sides. Packages, SHA256SUMS and the full CHANGELOG.md on the GitHub release page.
TRANSFERS
Fixes from a full review of the project: transfers, security, stability, keyboard and display. Built clean on all three platforms and verified with make test plus AddressSanitizer/UBSan runs of the transfer suite. The transfer fixes are verified against scripted boards in the test suite; reports from Rainbow and Punter transfers on real boards are very welcome. Thanks to Larry for the transfer reports. Packages, SHA256SUMS and the full CHANGELOG.md on the GitHub release page.
TRANSFERS
SECURITY
STABILITY
KEYBOARD
DISPLAY
Upload fix on top of 3.0.3, built clean with zero warnings and verified with make test including a new regression test. Thanks to Larry for the upload report. Packages and SHA-256 checksums on the GitHub release page.
Maintenance release on top of 3.0.2, built clean with zero warnings and verified with make test. Thanks to Larry for the detailed transfer reports. Packages and SHA-256 checksums on the GitHub release page.
Point release built 1 November 2026 from the bug reports that came in after 3.0.1. Thanks to mrdudz and THE-MrMicro for the careful, detailed GitHub issues that drove these fixes.
Full-codebase security review (31 October 2026), first shipped as rebuilt 3.0.1 binaries on 1 November and now part of 3.0.2: every finding fixed, warning-clean build, make test green, disk-image fuzzer clean under ASan/UBSan.
Major update to the C64 BBS terminal MagerValp gave the scene. Same heart: real boards, PETSCII on glass, files in motion. The codebase is cleaned and runs on SDL 1.2 via sdl12-compat (on top of SDL2/SDL3); the polish nods to demoscene intros, modem-era mood, batch transfers, disk tools, and UI work for people who still enjoy watching bytes.
Respect forever to MagerValp for the original CGTerm and the BBS culture it stands for. Scene Edition: code David “m00p” Jacoby (Genesis*Project), music Mr.Death, ANSI logo nail / fire, support mermaid, QA Larry / Jucke / SkyHawk / hedning, bug reports mrdudz / THE-MrMicro, and every sysop still running a C64 (or bridge) board.
Latest release v3.0.7 · · served from GitHub Releases with release notes · SHA-256 checksums · all releases
Extract the zip and run cgterm.exe. Dependencies ship with the archive as documented in the bundle. Settings, bookmarks, notes and logs live in %APPDATA%\CGTerm.
Unzip and drag CGTerm.app to Applications. The app is signed but not notarized: the first launch needs System Settings › Privacy & Security › Open Anyway (right-click › Open is no longer enough). The app requires macOS 26 or later and tells you so on an older system; there, build from source (install SDL2 and libopenmpt as in the README, unpack the source and run make).
curl -LO https://github.com/unbreached/CGTerm-3.0/releases/latest/download/CGTerm-3.0-source.tar.gz tar xzf CGTerm-3.0-source.tar.gz cd CGTerm-3.0 make && sudo make installCGTerm-3.0-source.tar.gz Clone on GitHub
Feedback and discussion welcome on the board: telnet://bbs.retrohack.se:64128
